IRS2186 are high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.
![74HC595D SMD](https://climaxcomponents.com/wp-content/uploads/2022/11/74595-ic-smd-package-400x400-1.jpeg 400w, https://climaxcomponents.com/wp-content/uploads/2022/11/74595-ic-smd-package-400x400-1-300x300.jpeg 300w, https://climaxcomponents.com/wp-content/uploads/2022/11/74595-ic-smd-package-400x400-1-150x150.jpeg 150w)
74HC595D SMD 8-bit serial-in IC
₹15.00 Original price was: ₹15.00.₹12.00Current price is: ₹12.00.
![GBJ35M](https://climaxcomponents.com/wp-content/uploads/2022/12/IMG-20221221-WA0024-e1671618556378-430x419.jpg 430w, https://climaxcomponents.com/wp-content/uploads/2022/12/IMG-20221221-WA0024-e1671618556378-308x300.jpg 308w, https://climaxcomponents.com/wp-content/uploads/2022/12/IMG-20221221-WA0024-e1671618556378-150x146.jpg 150w, https://climaxcomponents.com/wp-content/uploads/2022/12/IMG-20221221-WA0024-e1671618556378.jpg 562w)
GBJ35M BRIDGE RECTIFIER Diode Module
₹250.00 Original price was: ₹250.00.₹200.00Current price is: ₹200.00.

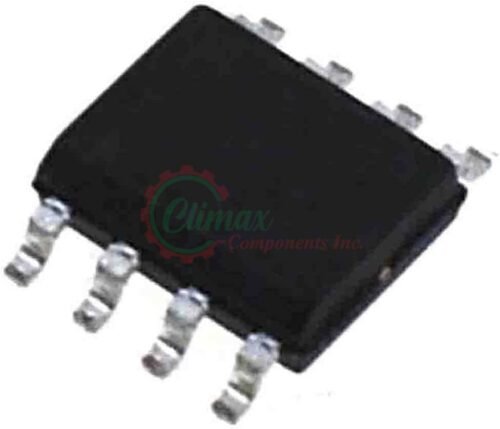

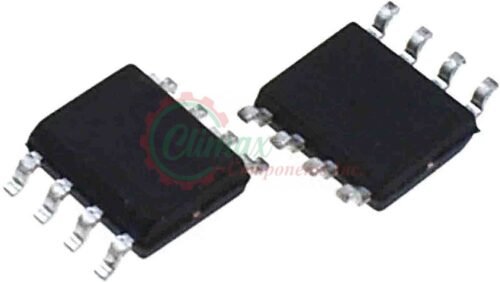

S2186 SMD HI LOW SIDE DRIVER IC- SOP-8N
₹200.00 Original price was: ₹200.00.₹100.00Current price is: ₹100.00.
S2186 Features
- Floating channel designed for bootstrap operation.
- Fully operational to +600 V.
- Tolerant to negative transient voltage.
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout for both channels.
- 3.3 V and 5 V logic compatible
- Matched propagation delay for both channels
- Logic and power ground +/- 5 V offset.
- Lower di/dt gate driver for better noise immunity.
- Output source/sink current 4 A / 4 A.
- RoHS compliant
