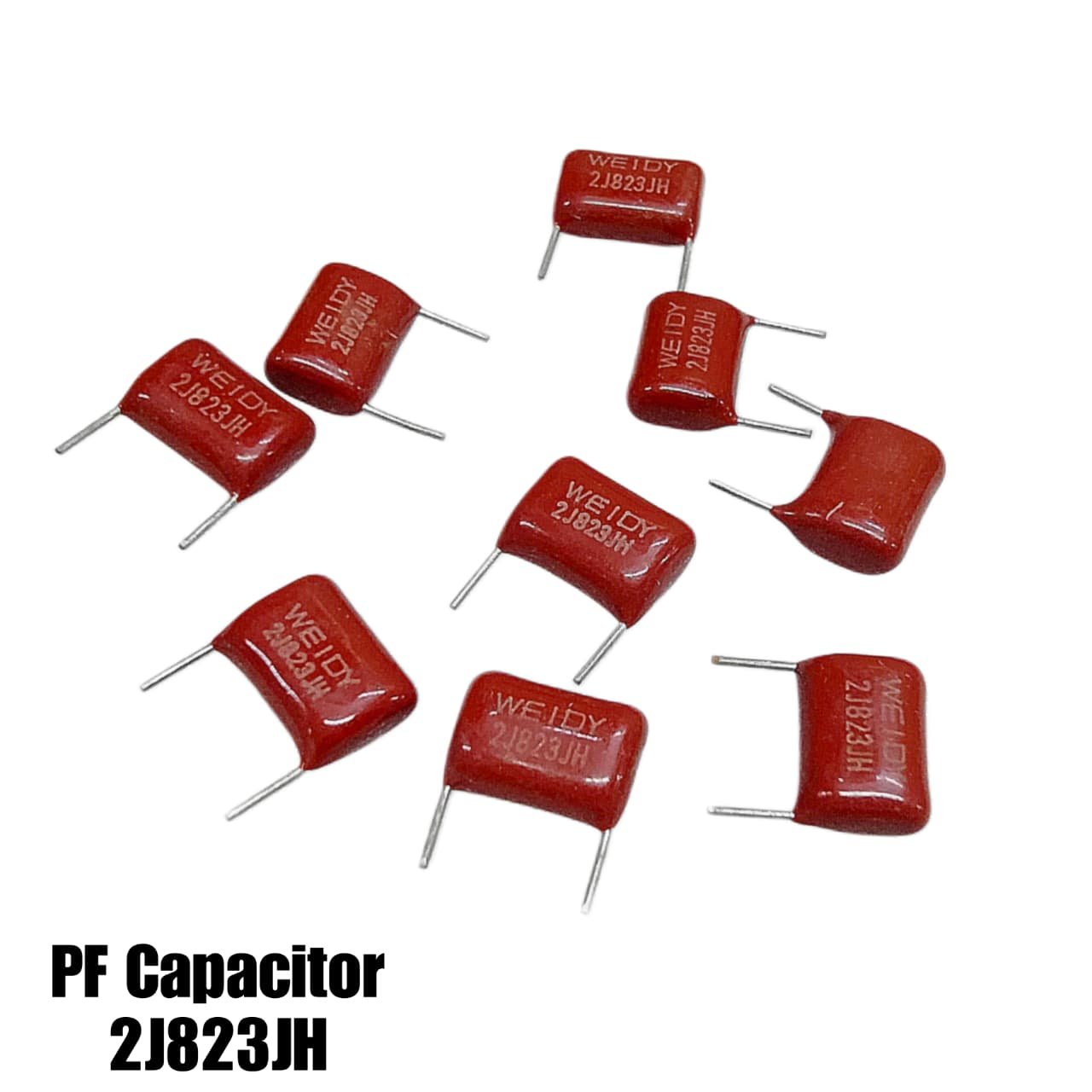

82nF 630V Non-Polar Film Capacitor – 2J823JH (10 Pcs)

82nF 630V Non-Polar Film Capacitor – 2J823JH

2J823JH represents a polyester film capacitor with a value of 82 nanofarads (nF) and a voltage rating of 630 volts (V)

• 2J: This part of the code indicates the voltage rating. According to the EIA (Electronic Industries Alliance) standard, “2J” stands for 630V.
• 823: This is the capacitance value code, which is read in picofarads (pF).
  • • The first two digits (82) are the significant figures.
    • The third digit (3) is the multiplier, indicating the number of zeros to add.
    • Therefore, the capacitance is



      82×103 pF82 cross 10 cubed pF

      82×103 pF

      , which equals 82,000 pF.

    • Since 1,000 pF equals 1 nF, the capacitance is 82 nF.

• J: This letter represents the capacitance tolerance. “J” indicates a tolerance of ±5%.
• H: The final letter is often used for manufacturer-specific information or sometimes relates to the temperature coefficient, but the core electrical specifications are determined by the preceding characters.
